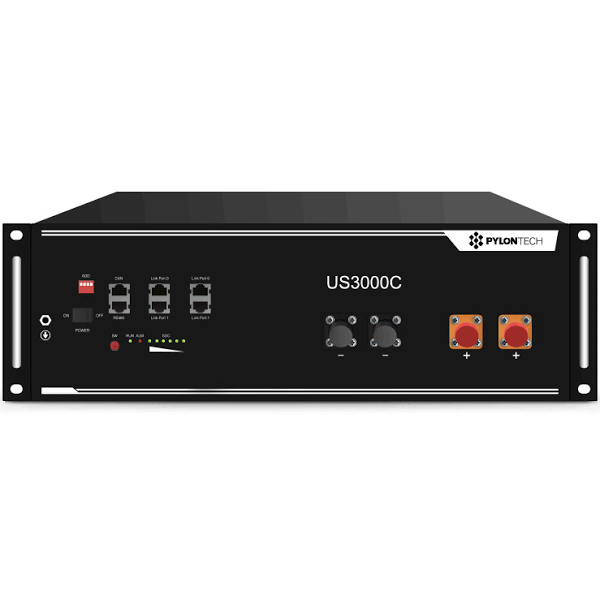

US3000C our is the latest HESS battery system provided by Pylontech with our abundant experience of delivering our product into more than 1,000,000 users. It’ s long life character, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflects the real requirements of end users and strongest technical capability of Pylontech.

Pylon teck-3.55kWH-48V-Li-ion-battery  phosphate battery can be used to reliably provide power for various types of equipment and systems. It is especially suitable for applications with high power, limited installation space and long cycle life.
It has a built-in BMS (battery management system), which can manage and monitor cell
information including voltage, current and temperature. Moreover, the BMS can balance cells
during charging and discharging to extend cycle life.
Multiple batteries can be connected in parallel to expand capacity and power, supporting more extended autonomy requirements.

Features:

• The whole module is non-toxic, non-polluting and environmentally friendly;
• Cathode material is made from LiFePO4 with safety performance and long cycle life;
• Battery management system (BMS)has protection functions including over-discharge, over-charge, over-current and high/low temperature;
• The system can automatically manage the charge and discharge state and balance the current and voltage of each cell;
• Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power
• Adopted self-cooling mode rapidly reduced system’s entire noise;
• The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, excellent performance of shallow charge and discharge;
• Working temperature range is from -10 to 50, (Charging 0~50; discharging -10~50 ) with excellent discharge performance and cycle life;
• Small size and lightweight, the standard of 19-inch embedded designed module is comfortable for installation and maintenance;
