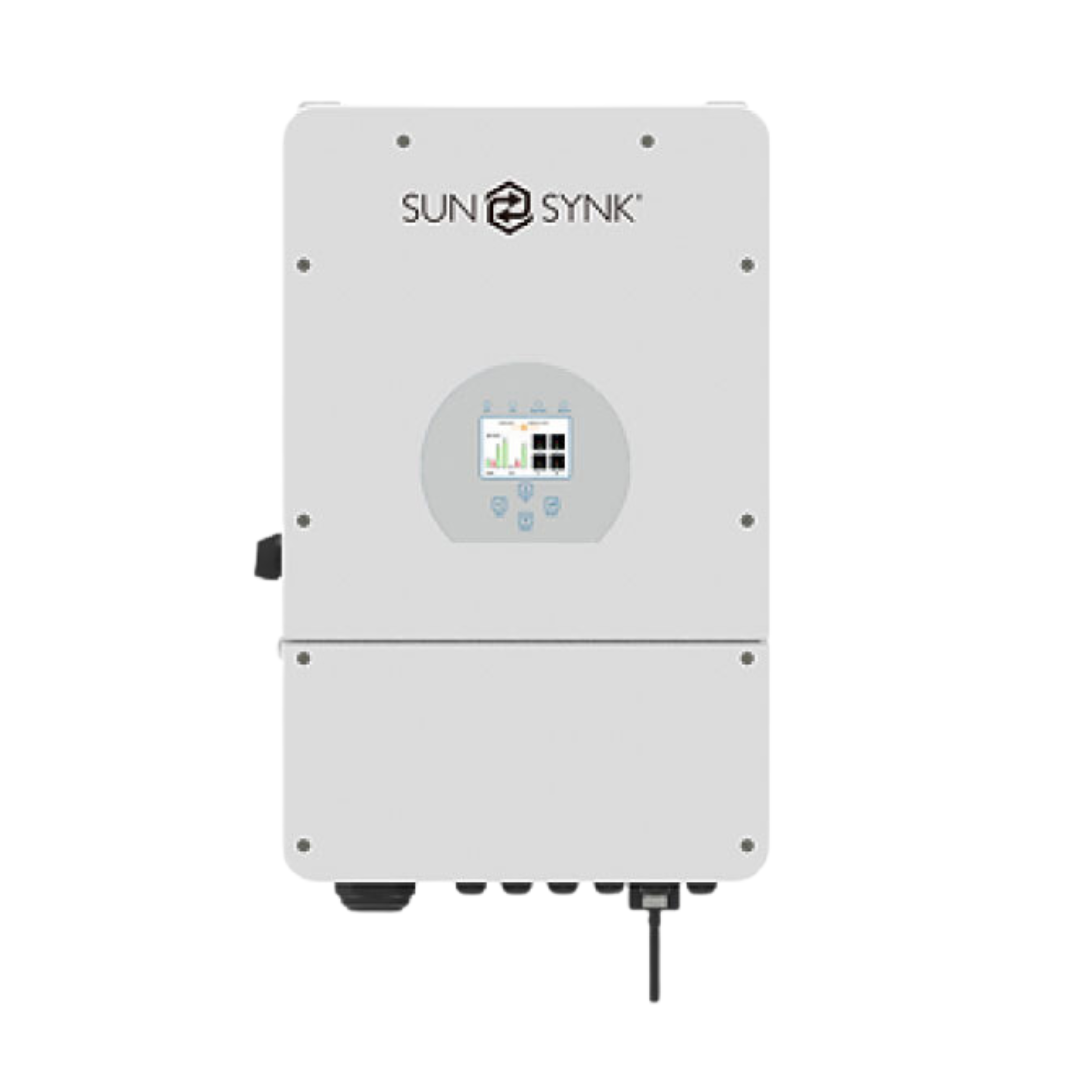

SUNSYNK 16kW Hybrid Inverter (1 Phase) – SUNSYNK MAX

Model SUNSYNK MAX

The Most Powerful Low-voltage Inverter In The World.

Achieves a Maximum Output Power of 16kW and battery Charge Current of 300A

Manages power flow from multiple sources such as Solar, Main Power (Grid) and generators, then effectively storing & releasing power as & when utilities require.

Colourful Touch LCD

Storing energy from diesel generator supported.

Wi-Fi & GSM monitoring supported.

Equipped with a Visual power flow screen.

Parallel/multi-invert function grid-tied & off-grid.

Grid Type: Single-Phase.

Protection Degree: IP65

Noise Level: <30dB

Maximum Charge & Discharge Current: 300A

Battery Charging Strategy: Self-Adaptation to BMS

Maximum DC Input Power: 18000W

MPPT Range: 250-450V

Start-up Voltage: 150V

Maximum On-Grid AC Power: 16000W

Maximum Off-Grid AC Power: 13000W

AC Output Rated Current: 65A

Maximum AC Current: 70A

Frequency Range: 45-55Hz

Voltage Range: 211-264V

Maximum Efficiency: 97.60%

MPPT Efficiency: 99.90%

Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)

Battery Voltage Range: 43-60V

Communication with BMS: CAN/RS485

Fan Cooling

Operation Temperature: -25°C to 55°C

Installation Type: Wall Mounted.

Weight: 34.5Kg

Dimensions (W x H x D): 422 x 702 x 281 mm

Refer To the Brochure For Detailed Product Specifications.

Product might vary from depicted images.

Graphics are for illustrative purposes only.

5 Year Limited Product Warranty. T & C’s Apply

Free Delivery Nationwide – South Africa

Recommended Solar Panel Configuration:

Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)

First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)

Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)

Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)

Based on Seraphim, Raystech, JINKO, JA Sola Product label16KW Single Phase Sunsynk Max Hybrid Inverter

Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine – all with a Sunsynk Hybrid Inverter. It’s ideal for home and business and scalable so that you can expand it as required.
