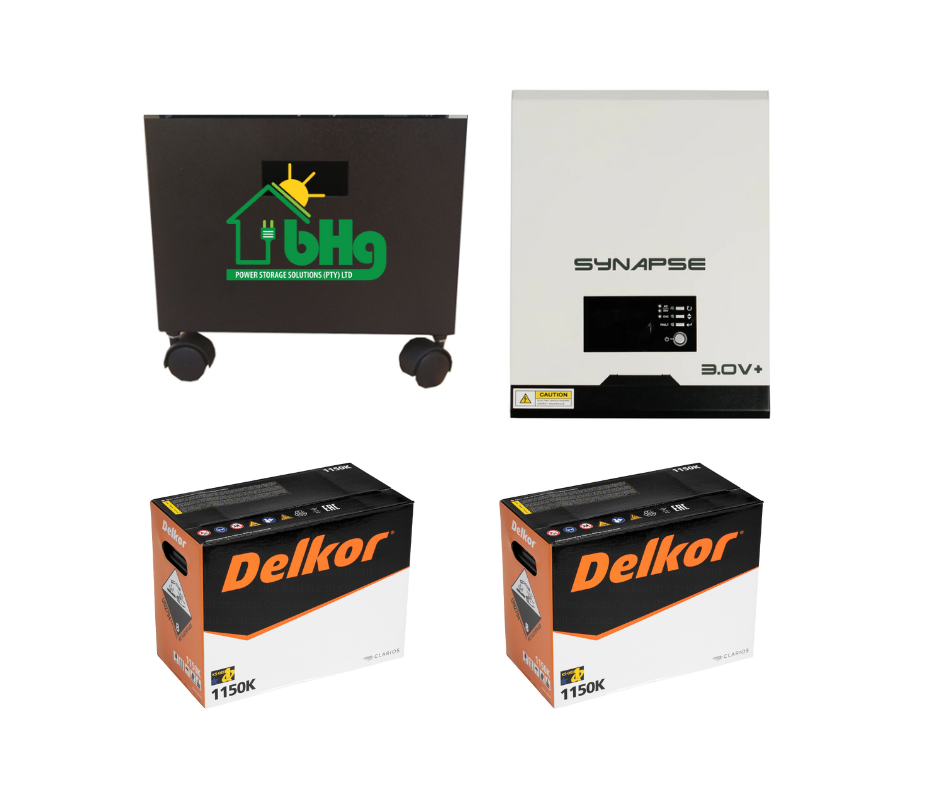

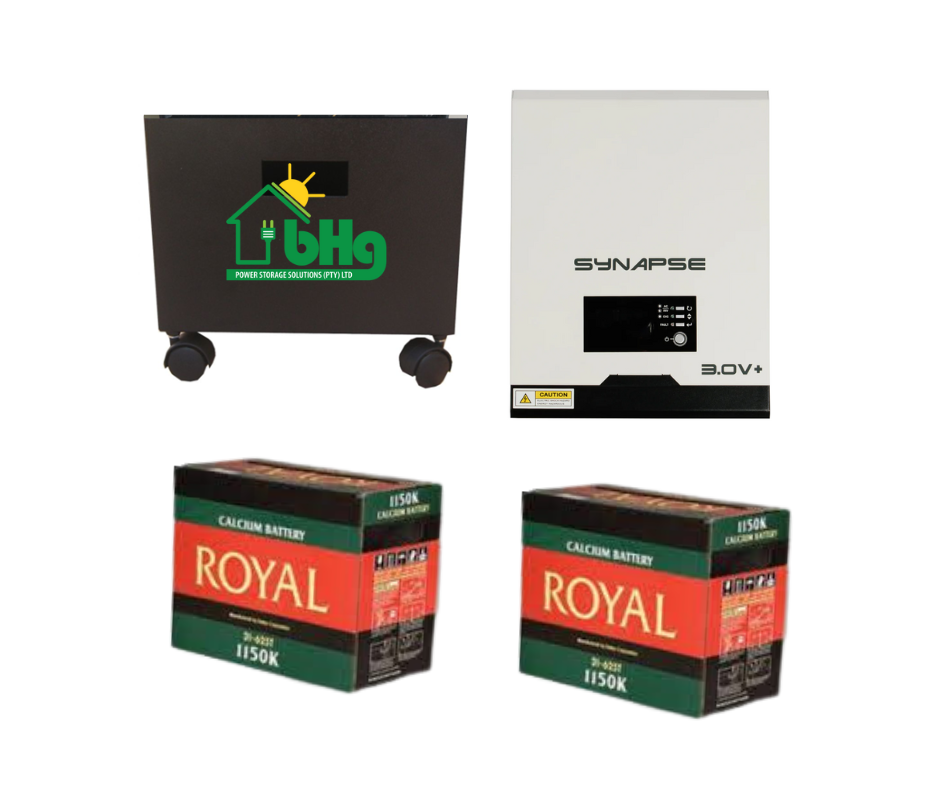

The Synapse 3000Watt+ Combo Pure Sine Wave series inverter converts DC power into AC power. With a continuous output and compact design, the unit is ideal for running the following: Rated Output Power Factor 10ms (For Personal Computers); 20ms (For Home Appliances). Change over time to mains and inverter <= 8 msec.

  • TV, Stereos, Laptop and computers and other home appliances. With two batteries you can have easy backup of up to 6 hours. By adding additional batteries you can extend your backup time.
  • Pure sine wave solar inverter
  • Output power factor of 1
  • 3000W PURE SINE WAVE  24V system. Which include Inverter and two 105AH batteries.
  • Battery equalization function to optimize battery performance and extend the battery lifecycle
  • Build -in anti dust kit for harsh environment
  • Build -in 60Amp MPPT solar charger
  • Provides overload protection
  • Multi-function LED/LCD indications and buzzer alarms
  • High efficient DC-to AC conversion, minimizing energy loss
  • Super-efficient, DC to AC conversion, minimizing charging losses
  • Fully automatic start operation
  • High frequency technology
  • Compact size and light weight
  • Provides critical overload protection
  • Eco-friendly & non-polluting (green device)
  • Advanced technology optimizes battery life

Model Synapse 3000Watt+

Product Code SYNAPSE 3.0+
Rated Power 3000VA / 3000W
Input
Voltage 230V AC
Selectable Voltage Range 170 – 280V AC (For Personal Computers); 90 – 280V AC (For Home Appliances)
Frequency Range 50Hz / 60Hz (Auto sensing)
Output
AC Voltage Regulation (Battery Mode) 230V AC ± 5%
Surge Power 6000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10ms (For Personal Computers); 20ms (For Home Appliances)
Waveform Pure sine wave
Battery
Battery Voltage 24V DC
Floating Charge Voltage 27V DC
Overcharge Protection 33V DC
Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage 145V DC
Maximum PV Array Power 1500W
MPP Range @ Operating Voltage 30 ~ 115V DC
Maxmum Solar Charge Current 60A
Maximum AC Charge Current 60A
Maximum Charge Current 120A
Physical
Dimension (D x W x H) 100 x 300 x 440mm
Net Weight 9,5kgs
Communication Interface USB / RS232
Environment
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
