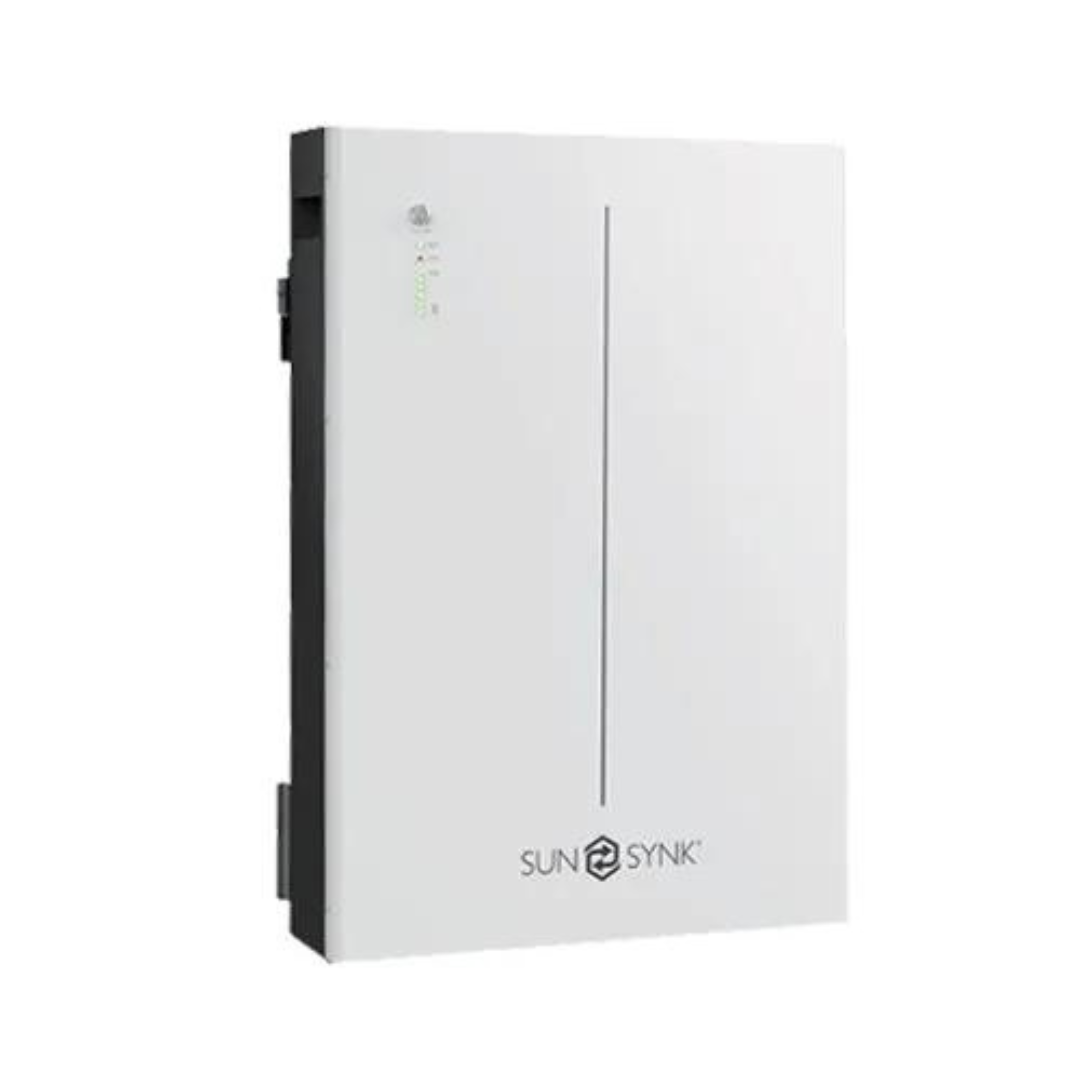

SUNSYNK 10.65KW BATTERY 51.2V

Sunsynk 10.65kW  battery 51.2V is a lithium-ion battery It provides a reliable backup power supply for supermarkets, banks, schools, farms and small factories to smooth the load curve and achieve peak load transfer. It can also improve the stability of renewable systems and promote the application of renewable energy.

It is characterized by high integration, good reliability, long service life, wide working temperature range, etc. The battery energy storage system is modular. Each battery module has a capacity of  208AH .. Its total energy can be expanded from 4.61kWh to 10.65 kWh.

The series is especially suitable for applications of high power, limited installation space, restricted load-bearing and long-life cycle. The battery has a built-in management system, which can manage and monitor cell information, including voltage, current and temperature. What’s more, BMS can balance cell charging and discharging to extend cycle life.

Specifications

Battery Chemistry LiFePO4
Capacity (Ah) 208AH
Scalability Max 8 batteries in parallel
Nominal Voltage 51.2
Operating Voltage 43.2 – 57.6
Energy (kWh) 10.65Kwh
Usable Energy (kWh) 10650 W h
Charge / Discharge Current (A) Recommend [2]
Max [2]
Peak [2 mins, 25°C]
50
100
150
Recommend Depth of Discharge 90%
Dimension (w/h/d) mm 550×160×836mm
Weight Approximate (kg) 90kg
Master LED Indicator 5 LED (20%-100%)
3 LED (working, alarming, protecting)
IP Rating of Enclosure IP20
Working Temperature Charge: 0°C – 55°C
Discharge: –20? ~ 60?
Storage Temperature 25?,12 months; 35?,6 months; 45?,3 months
Humidity ? 95%RH
Cycle Life 6000 Cycles @ 80% DOD / 25? / 0.5C?60% EOL
Installation Floor stand or Wall mounted
Communication Port RS232, RS485 CAN
Warranty Period [3] 5 years
